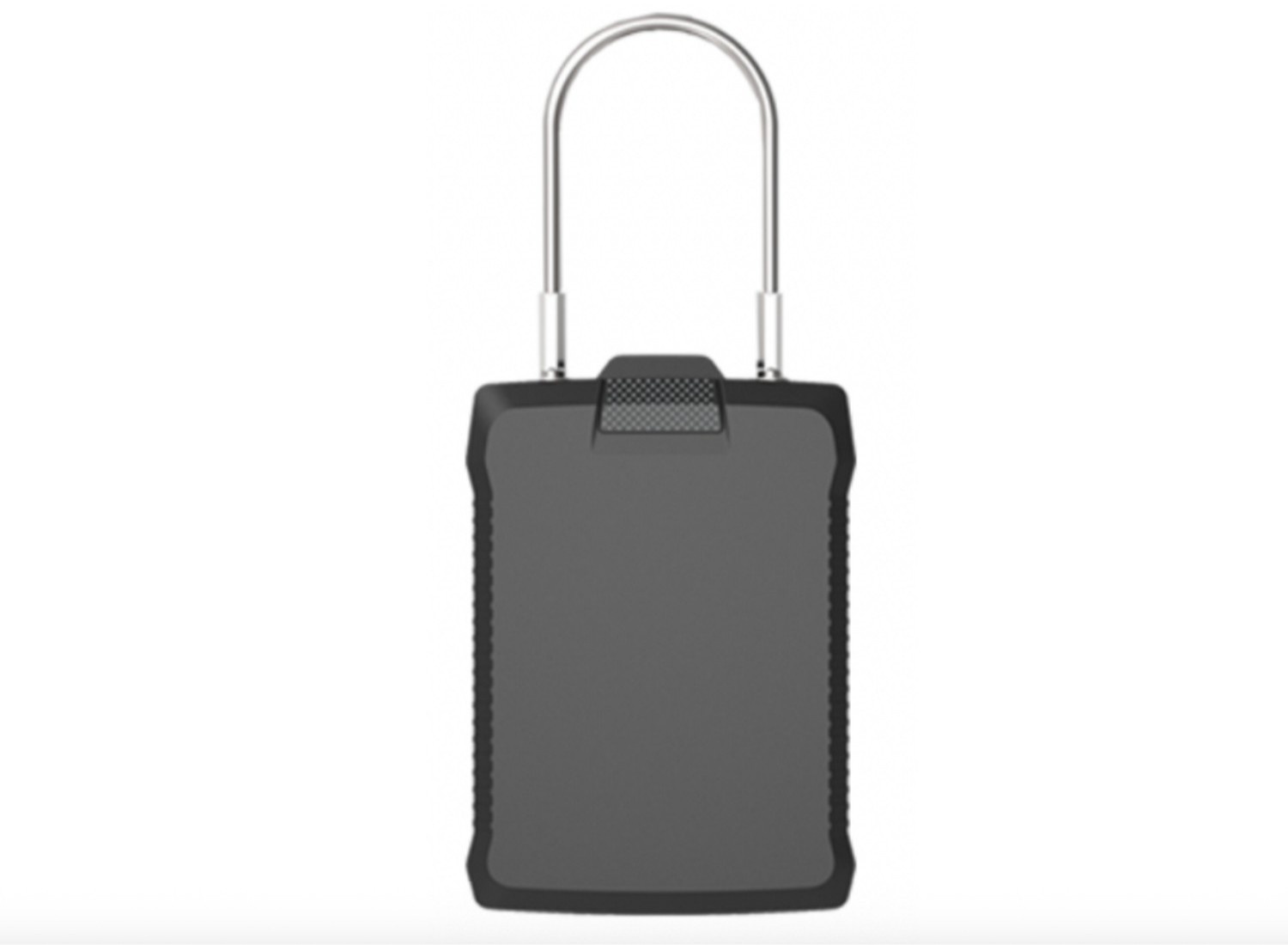

T-GL600 Elock GPS
T-GL600 is 2G/3G/4G Smart Electronic Lock, bulit-in10400maH battery, G-sensor and RFID reader, and
monitor the container or asset's location and door status. through the wireless technology, User can open the
GPS lock remotely by SMS password or (android or IOS) app. If there is no cellular network, user can also
open the lock by the authorized RFID key on spot.
- Dimension (LxWxH):
- 195mmx114mmx37mm
- Housing Material:
- Engineering plastics
- Weight:
- 1000g (with standard accessories)
- Built in battery:
- 10400mAh rechargeable Li ion battery
- Working temperature:
- -20°C -- +80°C
- Storage temperature:
- -40°C -- +80°C
- Relative humidity:
- 5%—99%
- Waterproof Grade:
- IP67
- CHARGING:
- 5V DC from charger
- GSM Module:
- Quectel M26 or UC15 or EC25
- Cellular Network
- 2G/3G/4G
Function:
- Transmission Mode:
- Support TCP(GPRS) or SMS(short message)
- I Data automatic upload:
- GPS+LBS Positioning
- Vibration detecting:
- Build in 3 Axis acceleration sensor
- Unlock:
- Unlocking of the device can be done remotely using remote password/SMS/RFID/Bluetooth/
- Wake up mode:
- Call / SMS / Swiping card / Vibration / Lock string tamper/Bluetooth
- Lock status monitoring mode:
- Real time monitoring
Alarm:
- Lock-string tampers alarm
- Swiping card alarm
- Unlock alarm
- Wrong password alarm
- Geo-fence alarm

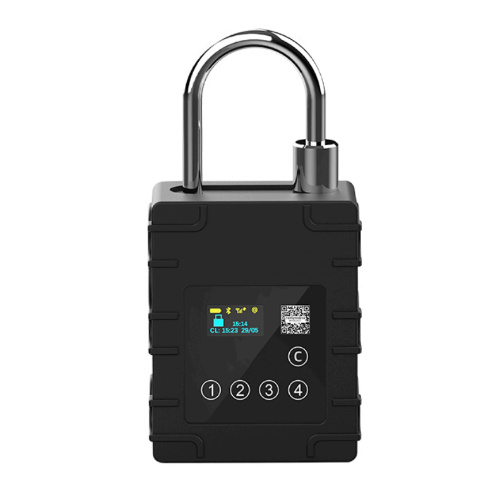

T-G310P Elock GPS
The G310P Elock GPS is a kind of GPS tracker device. It is equipped with GPS, GSM module for container real time position tracking. Waterproof IP67 for dust and water resistance, and it is good for outdoor hard environment application. The device also supports LBS data, but only by one BTS (Base Transceiver Station). It can support muti kinds of alarm: low power alarm, dismounting alarm, drop alarm, lock string cut off alarm, unlock alarm, lock alarm, etc.
- Power Input
- 5V/3A DC
- Body dimension (LxBxH)
- 108x86x48 mm
- Material
- Aluminum Alloy, Tampered Glass
- Humidity
- 95% non-condensing
- Waterproof
- IP67
- Battery Power
- 10000mAh/3.6-4.2v li-battery
- Working Temperature
- -30 ~ +80c
- Working Time
- 7-10 Days
- Memory (MB)
- 2M Flash, >8000 blind spot data stored
- GSM Frequency
- 850/900/1800/1900 MHz
- Working Temperature
- -30℃ to 80℃
- Storage Temperature
- -45℃ to 85℃
- GPS Module
- UBLOX GPS, the precise scope of 10 meters
- BLE
- BLE 4.0/5.0
- GPS Start
- 32S (cold), 1S (hot)
- ESD Protection
- 25000 Volt
- Screen Type
- OLED
- Unlock Methods
- Web portal, SMS, RFID card, BLE
- Upload Interval
- Adjustable, from 20 sec. to 30 min
Function:
- Transmission Mode:
- Support TCP(GPRS) or SMS(short message)
- I Data automatic upload:
- GPS+LBS Positioning
- Vibration detecting:
- Build in 3 Axis acceleration sensor
- Unlock:
- Unlocking of the device can be done remotely using remote password/SMS/RFID/Bluetooth/
- Wake up mode:
- Call / SMS / Swiping card / Vibration / Lock string tamper/Bluetooth
- Lock status monitoring mode:
- Real time monitoring
Alarm:
- Lock-string tampers alarm
- Swiping card alarm
- Unlock alarm
- Wrong password alarm
- Geo-fence alarm

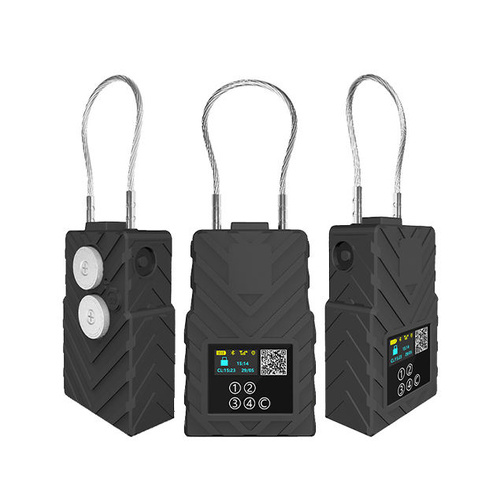

T-G508P Elock GPS
T-G508P is 2G/3G/4G Smart Electronic Lock, bulit-in10400maH battery, G-sensor and RFID reader, and
monitor the container or asset's location and door status. through the wireless technology, User can open the
GPS lock remotely by SMS password or (android or IOS) app. If there is no cellular network, user can also
open the lock by the authorized RFID key on spot.
- Dimension (LxWxH):
- 195mmx114mmx37mm
- Housing Material:
- Engineering plastics
- Weight:
- 1000g (with standard accessories)
- Built in battery:
- 10400mAh rechargeable Li ion battery
- Working temperature:
- -20°C -- +80°C
- Storage temperature:
- -40°C -- +80°C
- Relative humidity:
- 5%—99%
- Waterproof Grade:
- IP67
- CHARGING:
- 5V DC from charger
- GSM Module:
- Quectel M26 or UC15 or EC25
- Cellular Network
- 2G/3G/4G
Function:
- Transmission Mode:
- Support TCP(GPRS) or SMS(short message)
- I Data automatic upload:
- GPS+LBS Positioning
- Vibration detecting:
- Build in 3 Axis acceleration sensor
- Unlock:
- Unlocking of the device can be done remotely using remote password/SMS/RFID/Bluetooth/
- Wake up mode:
- Call / SMS / Swiping card / Vibration / Lock string tamper/Bluetooth
- Lock status monitoring mode:
- Real time monitoring
Alarm:
- Lock-string tampers alarm
- Swiping card alarm
- Unlock alarm
- Wrong password alarm
- Geo-fence alarm
T-JT701 ELock GPS
Tectronix GPS e-Lock is a intelligent tracking lock device for asset management system. It is an intelligent GSM/GPS based remote electronic lock and asset tracker device, specially designed for tanker, trucks, containers and consignment tracking & monitoring. The main feature can be list as: Designed unlock not by key, but by RFID/remotely password; With big capacity battery, long working time; Built-in wireless module, real time online monitoring ; Built-in GPS module, global locating ; safety control, illegal unlock alarm and so on. The application can be container, trailer, Van type trucks and other types of trucks remote monitoring system.
- Dimension (LxWxH):
- 195mmx114mmx37mm
- Housing Material:
- Engineering plastics
- Weight:
- 700g (with standard accessories)
- Built in battery:
- 15000mAh rechargeable lithium battery
- Working temperature:
- -20째C---+60째C
- Storage temperature:
- -40째C---+80째C
- Relative humidity:
- 5%--99%
- Waterproof Grade:
- IP65
- Average standby current:
- Less than 0.1mA
- Average working current:
- Less than 90mA
- GSM frequency:
- 900/1800/1900 MHz
Function:
- Transmission Mode:
- TCP / SMS
- I Data automatic upload:
- Time interval
- Locating mode:
- GPS / LBS
- Vibration detecting:
- Built in 3G sensor
- Unlock:
- RFID/remote password
- Wake up mode:
- Call / SMS / Swiping card / Vibration / Lock string tamper
- Lock status monitoring mode:
- Real time monitoring
Alarm:
- Lock-string tampers alarm
- Swiping card alarm
- Unlock alarm
- Wrong password alarm
- Geo-fence alarm
T-G400 ELock GPS
ectronix Elock GPS is a intelligent tracking lock device for asset management system. It is an intelligent GSM/GPS based remote electronic lock and asset tracker device, specially designed for tanker, trucks, containers and consignment tracking & monitoring. The main feature can be list as: Designed unlock not by key, but by RFID/remotely password; With big capacity battery, long working time; Built-in wireless module, real time online monitoring ; Built-in GPS module, global locating ; safety control, illegal unlock alarm and so on. The application can be container, trailer, Van type trucks and other types of trucks remote monitoring system.
- Dimension (LxWxH):
- 140mmx102mmx35mm
- Housing Material:
- Engineering plastics
- Weight:
- 700g (with standard accessories)
- Built in battery:
- 6000mAh rechargeable lithium battery
- Working temperature:
- -20째C---+60째C
- Storage temperature:
- -40째C---+80째C
- Relative humidity:
- 5%--99%
- Waterproof Grade:
- IP65
- Average standby current:
- Less than 0.1mA
- Average working current:
- Less than 90mA
- GSM frequency:
- 900/1800/1900 MHz
- NFC:
- Supported
Function:
- Transmission Mode:
- TCP / SMS
- I Data automatic upload:
- Time interval
- Locating mode:
- GPS / LBS
- Vibration detecting:
- Built in 3G sensor
- Unlock:
- RFID/remote password
- Wake up mode:
- Call / SMS / Swiping card / Vibration / Lock string tamper
- Lock status monitoring mode:
- Real time monitoring
Alarm:
- Lock-string tampers alarm
- Swiping card alarm
- Unlock alarm
- Wrong password alarm
- Geo-fence alarm
